FANTY punch presses range from 25 tons to 1,000 tons in C-frame, H-frame and gantry configurations. Each press is built with a rigid frame, precision slide guiding and overload protection for reliable progressive-die stamping of automotive, appliance and electronic parts. Heavy-duty cast or welded frame minimizes deflection under load for consistent part quality. Eight-point or box-type guiding maintains die alignment and extends tool life. Hydraulic overload clutch protects the press and die from damage during misfeeds. Servo or variable-frequency motor reduces power consumption during idle and light-load periods.
PUNCH PRESS
Punch Presses for High-Speed Metal Stamping
25–1,000 t tonnage
C-frame / H-frame / gantry
Progressive die ready
Factory Direct
25–1,000 ttonnage rangeC / H / gantryframe typesProgressive dieready configurationFactory testedevery unit run before packing
WHY BUYERS CHOOSE PUNCH PRESSS
What a Punch Press Does for Your Line
Rigid frame construction
Precision slide guiding
Overload protection
Energy-efficient drive
ON THE FACTORY FLOOR

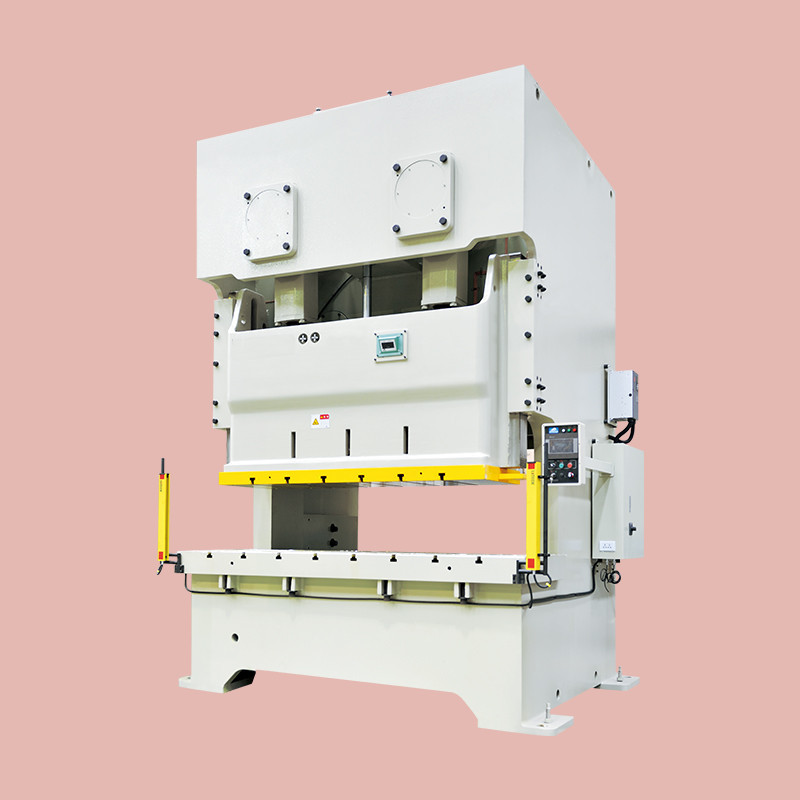

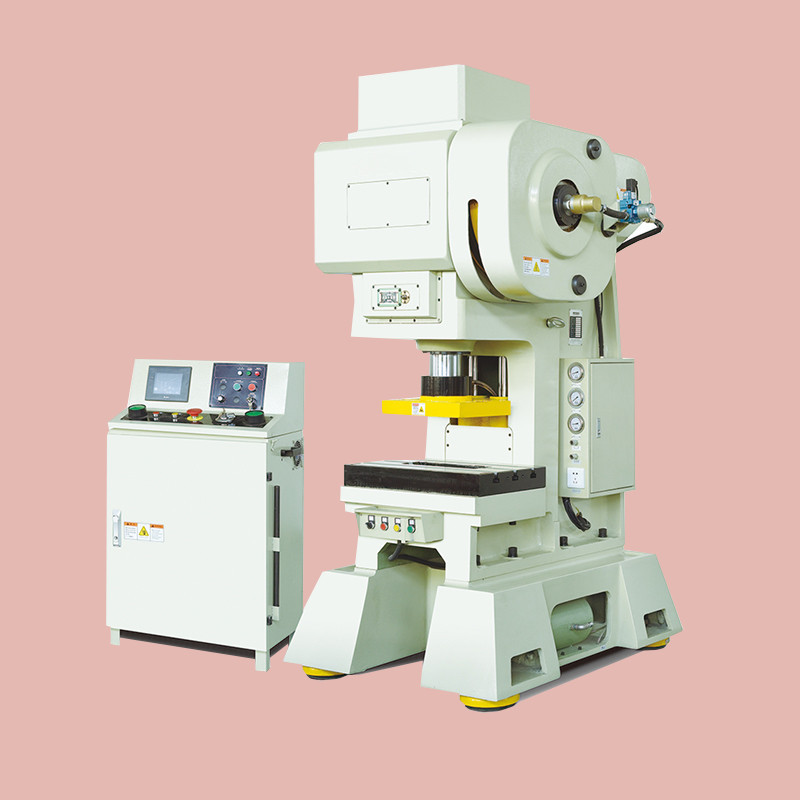

Punch Press Models in Production
Punch press stamping metal strip in progressive die The upper die is mounted on the slide and the lower die on the bolster plate. As the flywheel or servo motor drives the crankshaft, the slide moves downward, shearing or forming the metal strip. The strip is fed progressively by a servo or roll feeder so each stroke produces one or more parts. Widths, inner and outer diameters, drive types and options are engineered to the customer's specifications. Tell our engineers your requirements for a drawing-based quotation. Heavy-duty cast or welded frame minimizes deflection under load for consistent part quality. Eight-point or box-type guiding maintains die alignment and extends tool life. Hydraulic overload clutch protects the press and die from damage during misfeeds. Servo or variable-frequency motor reduces power consumption during idle and light-load periods. Progressive-die parts for body, chassis and powertrain components. Metal cabinets, drums, shelves and panels for home appliances. Shield cans, heat sinks, connector shells and brackets. Brackets, fasteners, hinges and structural metal parts. Upper and lower dies are aligned and clamped securely. Feeder advances the strip to the next pitch position. Slide descends and the die forms, cuts or pierces the material. Parts drop through the die or are carried out by a conveyor. Parts are inspected for burr, dimension and surface finish. Multiple punch presses on factory floor High-speed single crank press Wide factory floor view FANTY designs and builds decoilers, feeders and straighteners in-house, so you talk directly to the maker. Every unit is tested before packing; photos and video of your actual machine can be shared for approval. Export packing protects the machine for ocean freight and reduces the risk of transit damage. Our team answers technical questions before purchase and supports installation and spares afterwards. We supply presses from 25 tons to 1,000 tons in C-frame, H-frame and gantry configurations. High-speed models reach 800–1,200 SPM depending on stroke length and die complexity. Bolster and slide dimensions vary by tonnage. We provide a die-fit chart for each model to confirm compatibility. Standard features include two-hand buttons, light curtains, overload clutch and emergency stop. Additional guarding is available. Yes. Motor and control voltages are configured to your local standard before shipment. Standard presses ship in 30–45 working days. Custom configurations or large tonnages may need 60 days. Tell us your requirements. The FANTY engineering team will reply with a recommended configuration and a quotation.
HOW IT WORKS
How a Punch Press Works
25–1,000 t tonnage
C-frame / H-frame / gantry
Progressive die ready
Factory tested
CONFIGURATIONS
Typical Punch Press Configurations We Build

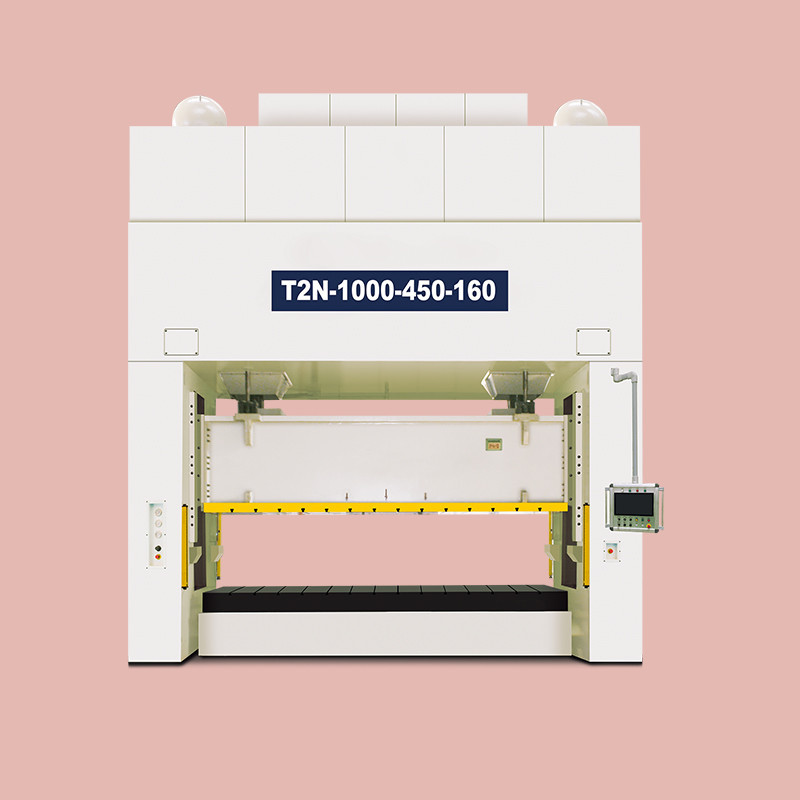

Parameter Typical value Model range C1S / D1G / GP / T2N Tonnage 25 – 1,000 t Stroke length 20 – 250 mm Max speed Up to 1,200 SPM Slide guiding Eight-point / box-type Overload Hydraulic clutch Voltage 380 V / 220 V / custom Certification CE, ISO
CORE FEATURES
Features That Protect Your Coil and Your Line
Rigid frame construction
Precision slide guiding
Overload protection
Energy-efficient drive
APPLICATIONS
Where Punch Presss Earn Their Keep
Automotive stamping
Appliance parts
Electronics hardware
Construction fittings
OUR PROCESS
From Inquiry to Installation: How FANTY Works
01
Die mounting
02
Strip feeding
03
Stamp stroke
04
Part ejection
05
Quality check
TRUST SIGNALS
Quality, Packing and Support You Can Verify
Factory-Direct Manufacturer
Run-Tested Before Shipping
Seaworthy Wooden-Case Packing
Engineering Support
FAQ
Punch Press Frequently Asked Questions
What tonnage range do you offer?
What is the maximum stamping speed?
What die sizes fit these presses?
What safety features are included?
Can the press voltage be customized?
What is the lead time for a punch press?
