High-speed punch presses are designed for continuous production at 800–1,200 strokes per minute. A rigid frame, precision balancing and advanced slide guiding maintain part quality even at top speed. These presses are ideal for small electronic terminals, motor laminations and precision metal parts.
Heavy-duty cast or welded frame minimizes deflection under load for consistent part quality.
Eight-point or box-type guiding maintains die alignment and extends tool life.
Hydraulic overload clutch protects the press and die from damage during misfeeds.
Servo or variable-frequency motor reduces power consumption during idle and light-load periods.

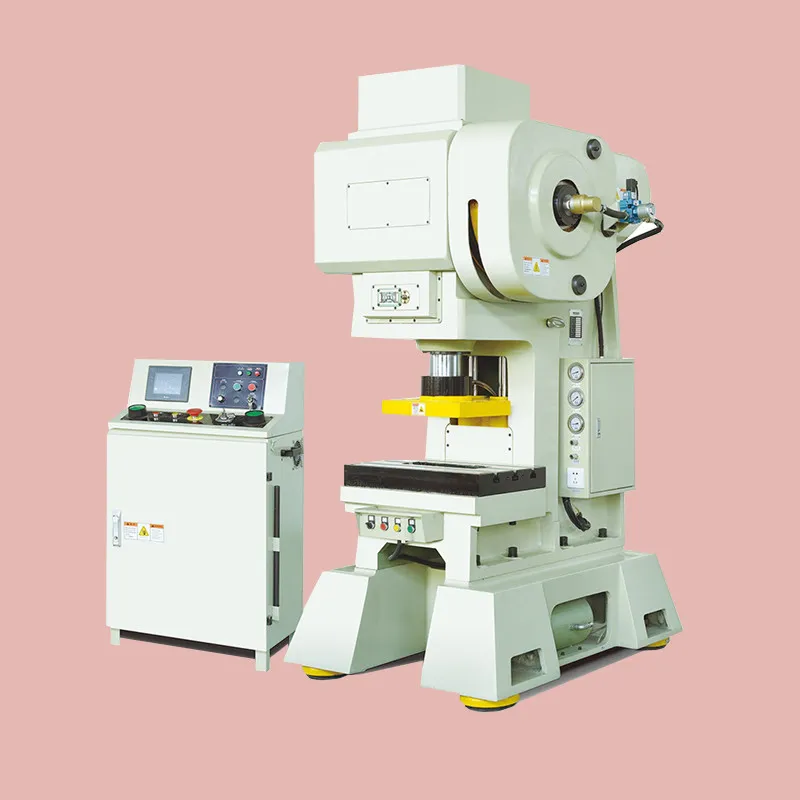

High-speed punch press stamping at high SPM
The upper die is mounted on the slide and the lower die on the bolster plate. As the flywheel or servo motor drives the crankshaft, the slide moves downward, shearing or forming the metal strip. The strip is fed progressively by a servo or roll feeder so each stroke produces one or more parts.
| Parameter | Typical value |
|---|---|
| Model range | D1G series |
| Tonnage | 60 – 300 t |
| Stroke length | 20 – 100 mm |
| Max speed | 800 – 1,200 SPM |
| Slide guiding | Eight-point |
| Overload | Hydraulic clutch |
| Voltage | 380 V / 220 V / custom |
| Certification | CE, ISO |
Widths, inner and outer diameters, drive types and options are engineered to the customer's specifications. Tell our engineers your requirements for a drawing-based quotation.
Heavy-duty cast or welded frame minimizes deflection under load for consistent part quality.
Eight-point or box-type guiding maintains die alignment and extends tool life.
Hydraulic overload clutch protects the press and die from damage during misfeeds.
Servo or variable-frequency motor reduces power consumption during idle and light-load periods.
Progressive-die parts for body, chassis and powertrain components.
Metal cabinets, drums, shelves and panels for home appliances.
Shield cans, heat sinks, connector shells and brackets.
Brackets, fasteners, hinges and structural metal parts.
Upper and lower dies are aligned and clamped securely.
Feeder advances the strip to the next pitch position.
Slide descends and the die forms, cuts or pierces the material.
Parts drop through the die or are carried out by a conveyor.
Parts are inspected for burr, dimension and surface finish.

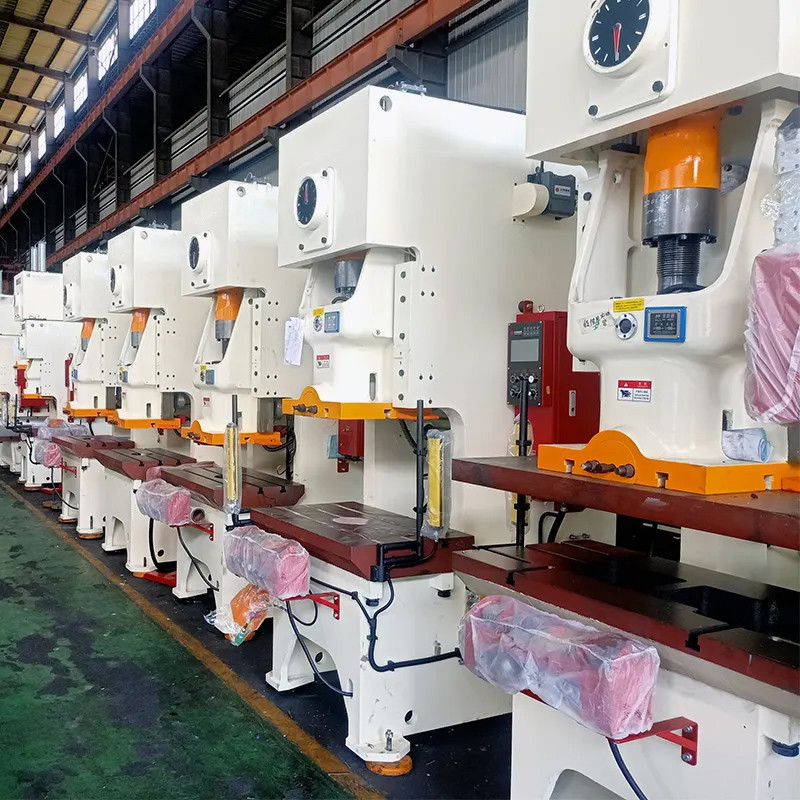

Press floor with multiple machines
Punch press line in workshop
Wide factory floor view
FANTY designs and builds decoilers, feeders and straighteners in-house, so you talk directly to the maker.
Every unit is tested before packing; photos and video of your actual machine can be shared for approval.
Export packing protects the machine for ocean freight and reduces the risk of transit damage.
Our team answers technical questions before purchase and supports installation and spares afterwards.
We supply presses from 25 tons to 1,000 tons in C-frame, H-frame and gantry configurations.
High-speed models reach 800–1,200 SPM depending on stroke length and die complexity.
Bolster and slide dimensions vary by tonnage. We provide a die-fit chart for each model to confirm compatibility.
Standard features include two-hand buttons, light curtains, overload clutch and emergency stop. Additional guarding is available.
Yes. Motor and control voltages are configured to your local standard before shipment.
Standard presses ship in 30–45 working days. Custom configurations or large tonnages may need 60 days.
