An NC servo feeder uses a servo motor and touch-screen controller to advance steel strip by an exact pitch length. It is ideal for progressive-die stamping where part accuracy depends on consistent feed timing. Models cover 0.2 mm to 6.0 mm strip thickness and widths up to 1,200 mm. Matches press stroke rates up to 1,000 SPM while maintaining consistent pitch accuracy. Servo or mechanical indexing keeps strip advancement within tight tolerances for quality parts. Tool-less roller gap and feed-length adjustments reduce changeover time between jobs. Hardened rollers and sealed bearings are built for continuous production environments.
PRESS FEEDER
NC Servo Feeders for Precision Coil Feeding
0.2–6.0 mm thickness
Up to 1,200 mm width
±0.05 mm accuracy
Factory Direct
0.2–6.0 mmstrip thicknessUp to 1,200 mmmax width±0.05 mmfeed accuracyFactory testedevery unit run before packing
WHY BUYERS CHOOSE NC SERVO FEEDERS
What a NC Servo Feeder Does for Your Line
High-speed feeding
Precise pitch control
Quick-release setup
Durable drive train
ON THE WORKSHOP FLOOR

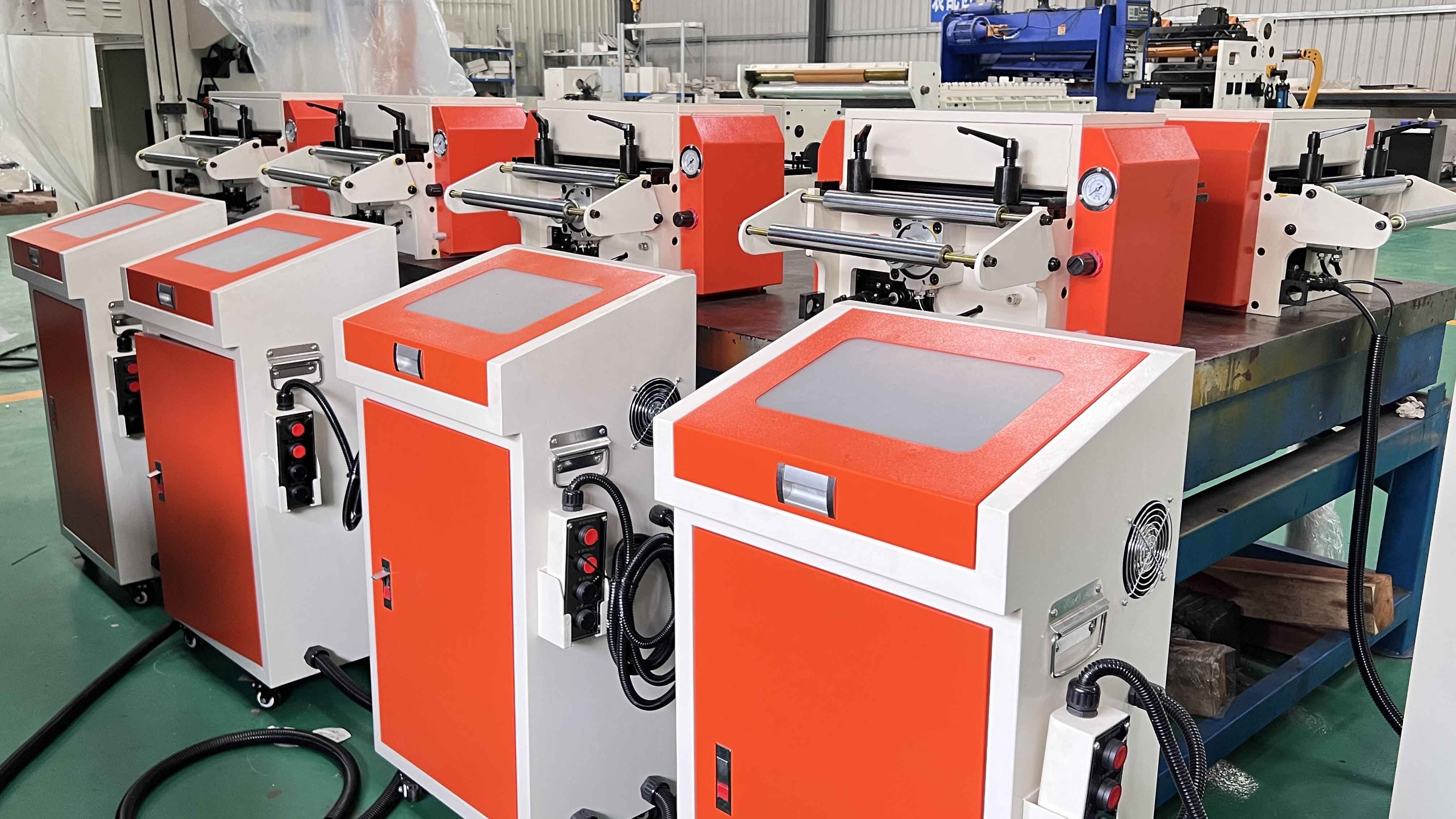

NC Servo Feeder Models in Production

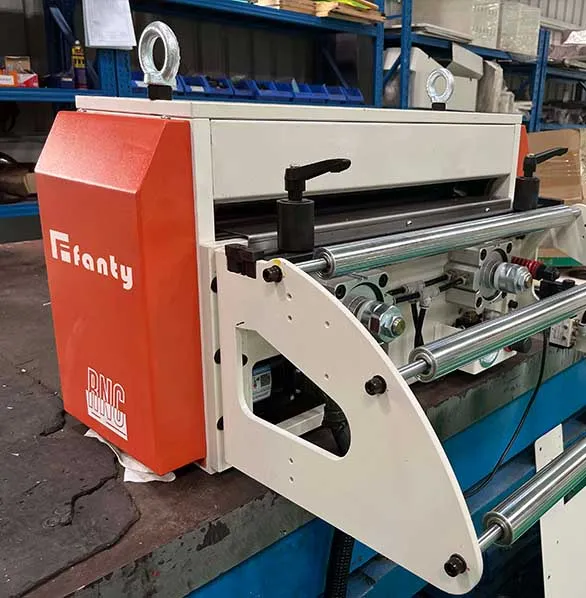

NC servo feeder with control panel in stamping line Steel strip exits the decoiler or straightener and enters the feeder. Hardened rollers or grippers clamp the material. A servo motor or mechanical cam advances the strip an exact pitch length, releases, and returns while the press performs the stamping cycle. Widths, inner and outer diameters, drive types and options are engineered to the customer's specifications. Tell our engineers your requirements for a drawing-based quotation. Matches press stroke rates up to 1,000 SPM while maintaining consistent pitch accuracy. Servo or mechanical indexing keeps strip advancement within tight tolerances for quality parts. Tool-less roller gap and feed-length adjustments reduce changeover time between jobs. Hardened rollers and sealed bearings are built for continuous production environments. Progressive-die parts for chassis, brackets and seat frames. Tiny pitch terminals, pins and shielding strips. Washing-machine drums, refrigerator shelves and metal cabinets. Chair bases, table legs and shelving brackets from coil strip. Material is guided into the feeder from the upstream coil line. Rollers or grippers clamp and advance the strip by the programmed pitch. The press stamps while the feeder holds position. Feeder releases and returns to the start position for the next cycle. Cycle repeats at press speed for continuous production. Feeder production floor Feeder integrated with press line Row of finished feeders ready for test FANTY designs and builds decoilers, feeders and straighteners in-house, so you talk directly to the maker. Every unit is tested before packing; photos and video of your actual machine can be shared for approval. Export packing protects the machine for ocean freight and reduces the risk of transit damage. Our team answers technical questions before purchase and supports installation and spares afterwards. Our feeders work with mechanical, hydraulic and servo presses. We match the feeder drive type and interface to your press model. Mechanical roll feeders reach up to 800 SPM. Servo feeders can exceed 1,000 SPM depending on strip length and thickness. Servo feeders achieve ±0.05 mm. Gripper feeders reach ±0.03 mm for thin materials. Roll feeders are typically ±0.1 mm. NC servo feeders handle 0.2–6.0 mm. Roll feeders suit 0.3–3.2 mm. Gripper feeders are ideal for 0.1–1.5 mm. Servo feeders use a touch-screen HMI with stored job recipes. Mechanical feeders synchronize through a press crank or flywheel linkage. Monthly lubrication of rollers and cam, quarterly belt tension check, and annual bearing inspection. We supply a maintenance schedule with each machine. Tell us your requirements. The FANTY engineering team will reply with a recommended configuration and a quotation.
HOW IT WORKS
How a NC Servo Feeder Works
0.2–6.0 mm thickness
Up to 1,200 mm width
±0.05 mm accuracy
Factory tested
CONFIGURATIONS
Typical NC Servo Feeder Configurations We Build
Parameter
Typical value
Model range
NCF series
Strip thickness
0.2 – 6.0 mm
Strip width
Up to 1,200 mm
Feed accuracy
±0.05 mm
Max speed
Up to 1,000 SPM
Control
Touch-screen HMI
Voltage
380 V / 220 V / custom
Certification
CE, ISO
CORE FEATURES
Features That Protect Your Coil and Your Line
High-speed feeding
Precise pitch control
Quick-release setup
Durable drive train
APPLICATIONS
Where NC Servo Feeders Earn Their Keep
Automotive stamping
Electronics connectors
Appliance parts
Metal furniture
OUR PROCESS
From Inquiry to Installation: How FANTY Works
01
Strip entry
02
Clamp & feed
03
Press stroke
04
Release & return
05
Repeat
TRUST SIGNALS
Quality, Packing and Support You Can Verify
Factory-Direct Manufacturer
Run-Tested Before Shipping
Seaworthy Wooden-Case Packing
Engineering Support
FAQ
NC Servo Feeder Frequently Asked Questions
What press types are these feeders compatible with?
What is the maximum feeding speed?
What feeding accuracy can I expect?
What strip thickness range is supported?
How is the feeder controlled?
What maintenance is required?
VIDEO

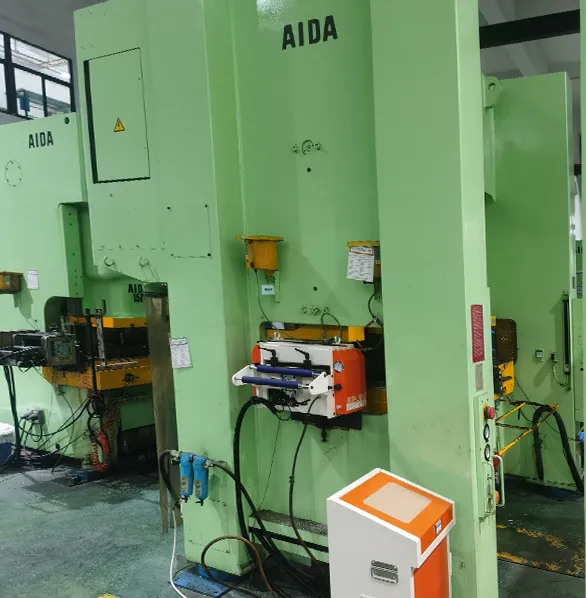

See NC Servo Feeder on a Real Line
Get a NC Servo Feeder Quotation
