Flat Decoiler
Precision Flat Decoiler Solutions for Thin-Gauge Coil Processing
A Flat Decoiler, also known as a disc decoiler or flat uncoiler, is a specialized machine engineered for unwinding thin metal coils in a flat, continuous manner. FANTY's Flat Decoiler series is designed to handle materials with thickness ranging from 0.1mm to 1.0mm, making it the ideal choice for precision stamping operations in electronics, automotive components, and light-gauge metalworking. With over a decade of manufacturing expertise, our Flat Decoiler units deliver smooth, controlled feeding that minimizes material distortion and optimizes downstream production efficiency.
What Is a Flat Decoiler and How Does It Work?
A Flat Decoiler is a precision material handling machine designed specifically for unwinding thin-gauge metal coils in a flat, continuous orientation. Unlike conventional cone-type decoilers, the Flat Decoiler uses a disc-style mandrel system that grips the coil evenly across its width, preventing edge damage and maintaining consistent strip tension. During operation, the Flat Decoiler rotates the coil at a controlled speed, feeding the strip material smoothly into downstream straighteners, feeders, or presses. FANTY's Flat Decoiler models incorporate self-centering mechanisms that automatically adjust to different coil widths, reducing setup time between production runs. The result is a feeding accuracy within ±0.5mm, essential for high-precision stamping applications where even minor material misalignment can lead to costly rejects.

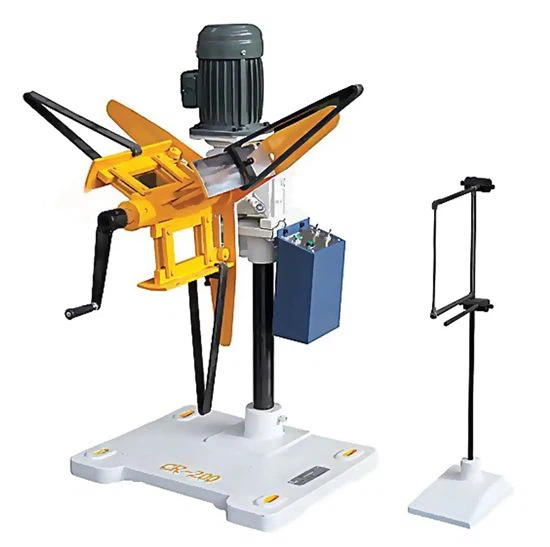

Key Benefits of Using a Flat Decoiler in Your Production Line
Investing in a dedicated Flat Decoiler offers several distinct advantages over general-purpose decoiling equipment. First, the disc-style mandrel of a Flat Decoiler provides superior coil support for thin materials, eliminating telescoping and edge wave defects that commonly occur with standard decoilers. Second, FANTY's Flat Decoiler series features variable speed control with a wide adjustment range, enabling precise matching of feed rate to press cycle time — this alone can improve overall equipment effectiveness by 12–18%. Third, the compact footprint of our Flat Decoiler design saves valuable floor space, making it ideal for workshops where layout optimization is critical. Fourth, the simplified mechanical construction of the Flat Decoiler requires less frequent maintenance, with bearing replacement intervals exceeding 5,000 operating hours under normal conditions. Fifth, the quick-change coil loading mechanism on FANTY Flat Decoiler models reduces coil changeover time to under three minutes, maximizing productive uptime in high-mix production environments.
Flat Decoiler Applications Across Key Industries

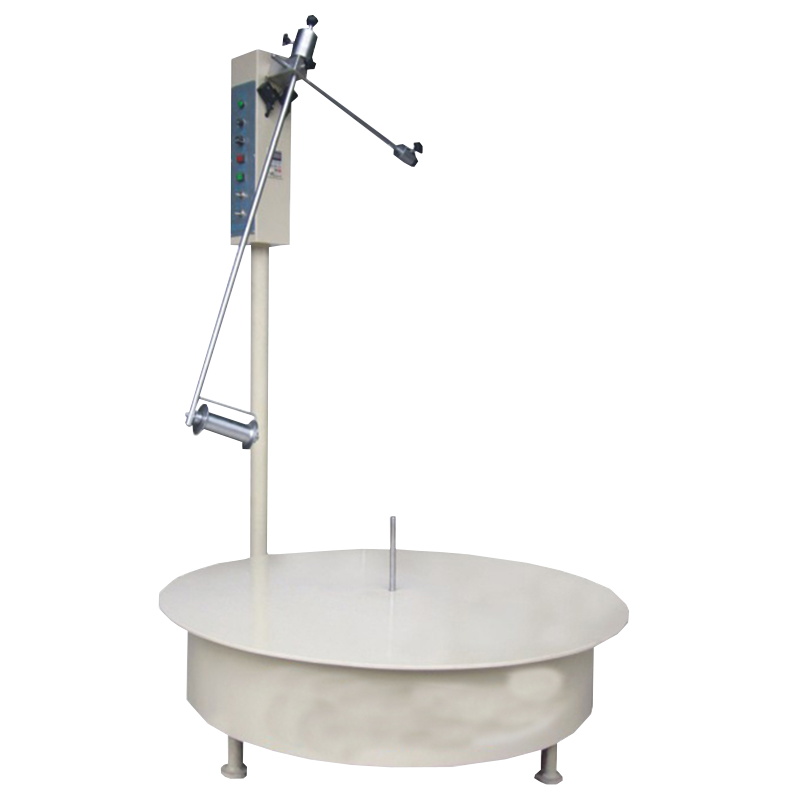

Electronics & Electrical
Flat Decoiler machines are widely used for feeding thin copper and aluminum coils into high-speed presses producing connectors, terminals, shielding cans, and heat sinks with micron-level precision.

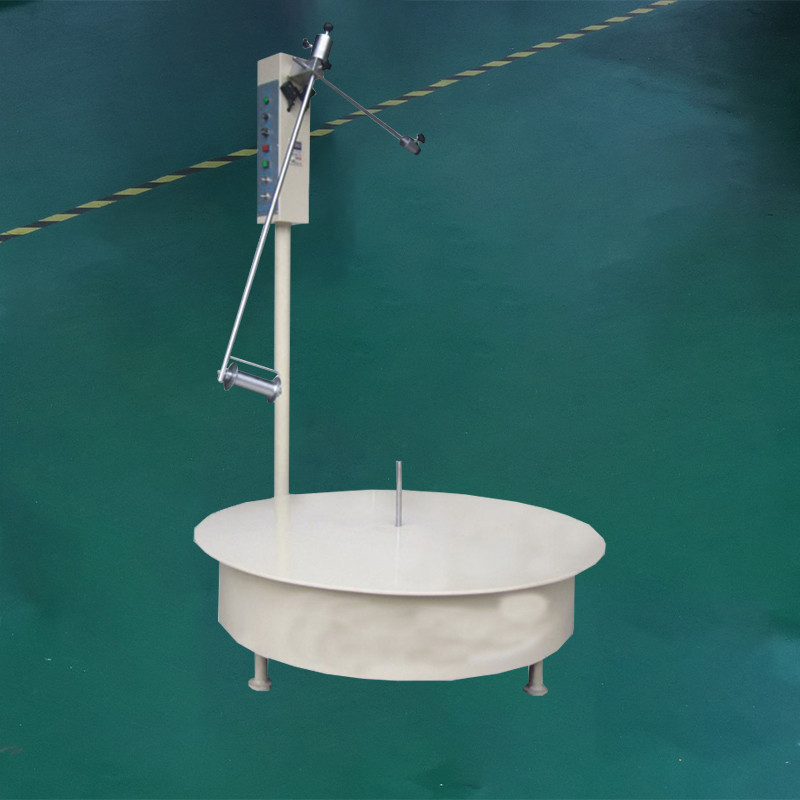

Automotive Components
From small brackets to intricate sensor housings, the Flat Decoiler ensures consistent material feed for automotive stamping processes where repeatability and surface quality are paramount.
Home Appliances
The Flat Decoiler handles thin-gauge steel and stainless strips used in producing refrigerator liners, microwave cavities, washing machine panels, and small appliance enclosures.
Hardware & Fasteners
Lock components, hinges, brackets, and other hardware items benefit from the consistent strip feeding that only a dedicated Flat Decoiler can provide for thin material stamping lines.
Flat Decoiler Technical Specifications and Model Range
FANTY offers a comprehensive range of Flat Decoiler models to suit different coil sizes and production requirements. Our standard Flat Decoiler series accommodates coil widths from 50mm to 300mm and coil weights up to 1,500 kg. For heavier applications, our heavy-duty Flat Decoiler variants support coil weights up to 3,000 kg with reinforced disc mandrels and enhanced braking systems. The expansion range of each Flat Decoiler mandrel covers standard coil inner diameters from 300mm to 530mm, with custom expansion ranges available for specialized applications. All FANTY Flat Decoiler models are equipped with manual or pneumatic expansion options, adjustable speed controllers, and emergency braking systems that meet international safety standards. Our engineering team can also design custom Flat Decoiler configurations for unique production requirements, leveraging our extensive experience with over 200 Flat Decoiler installations worldwide.
How to Select the Right Flat Decoiler for Your Application
Choosing the optimal Flat Decoiler requires a systematic evaluation of your production parameters. Start by determining the maximum coil width and weight you need to process — this directly dictates the Flat Decoiler frame size and mandrel length. Next, assess the material thickness range; while standard Flat Decoiler models handle 0.1–1.0mm, specific lightweight configurations can process material as thin as 0.05mm for ultra-precision applications. Consider your line speed — FANTY Flat Decoiler drives range from 0–20 m/min for standard models up to 0–40 m/min for high-speed variants. If your production involves frequent material changes, a Flat Decoiler with pneumatic expansion and auto-centering will significantly reduce changeover time. FANTY offers a free application assessment where our engineers review your current stamping line setup and recommend the ideal Flat Decoiler configuration, drawing from hundreds of successful integration projects across diverse manufacturing environments.
Why FANTY Flat Decoiler Delivers Superior Quality and Reliability
When you choose a FANTY Flat Decoiler, you are investing in a machine built to the highest standards of quality and reliability. Every Flat Decoiler manufactured at our facility undergoes a rigorous 12-point quality inspection process, including mandrel concentricity testing, load testing at 125% of rated capacity, and a 48-hour continuous run-in period. Our Flat Decoiler components are sourced from certified suppliers, with all critical bearings, motors, and control systems carrying ISO and CE certifications. With over 500 decoiler installations across 30+ countries and a customer satisfaction rate exceeding 92%, FANTY has earned a reputation as a trusted Flat Decoiler manufacturer. Our after-sales service includes worldwide technical support, comprehensive spare parts inventory, and on-site installation and training services to ensure your Flat Decoiler operates at peak performance from day one.
Flat Decoiler Maintenance Best Practices for Long Service Life
Proper maintenance is essential to maximize the service life of your Flat Decoiler. We recommend a daily visual inspection of the Flat Decoiler disc mandrel surface for wear or debris accumulation. Weekly lubrication of all rotating components, including the main bearing assembly and expansion mechanism, should be performed using the grease grades specified in your Flat Decoiler manual. Monthly checks should include belt tension verification, brake pad thickness measurement, and electrical connection tightening. Every quarter, a more comprehensive Flat Decoiler inspection should cover mandrel run-out measurement (acceptable tolerance: ±0.1mm), drive motor current draw analysis, and control system calibration. FANTY provides detailed maintenance schedules for every Flat Decoiler model and offers extended warranty plans that include scheduled preventive maintenance visits by our certified technicians. Following these practices, a FANTY Flat Decoiler typically delivers over 10 years of reliable service in normal production environments.
Request a Quote for Your Flat Decoiler Today
Contact our sales engineering team for a customized Flat Decoiler proposal. We provide detailed specifications, pricing, and delivery timelines within 24 hours of your inquiry. Experience the FANTY Flat Decoiler difference.
