This model is optimized for 0.4 mm to 2.2 mm steel coils. The straightener roll configuration and back-tension system are tuned for medium-gauge strip, delivering flat material to the die with minimal edge wave and residual stress. Uncoiling, straightening and feeding in one integrated unit saves floor space and simplifies line layout. A single control panel manages uncoil tension, straightener roller gap and feed pitch together. Multi-roll straightener removes coil set and camber so the strip enters the die flat and stress-free. Mandrel expansion and straightener roller gap are adjusted in minutes for faster job turnover.
DECOILER STRAIGHTENER FEEDER
Decoiler Straighteners for 0.4–2.2 mm Steel Coil
0.4–2.2 mm
200–500 mm width
Tuned for medium gauge
Factory Direct
0.4–2.2 mmstrip thickness200–500 mmcoil width5–7 rollsstraightenerFactory testedevery unit run before packing
WHY BUYERS CHOOSE DECOILER STRAIGHTENER FOR 0.4～2.2MM STEELS
What a Decoiler Straightener for 0.4～2.2mm Steel Does for Your Line
Compact footprint
Synchronized control
Precision straightening
Quick coil change
ON THE WORKSHOP FLOOR
Decoiler Straightener for 0.4～2.2mm Steel Models in Production

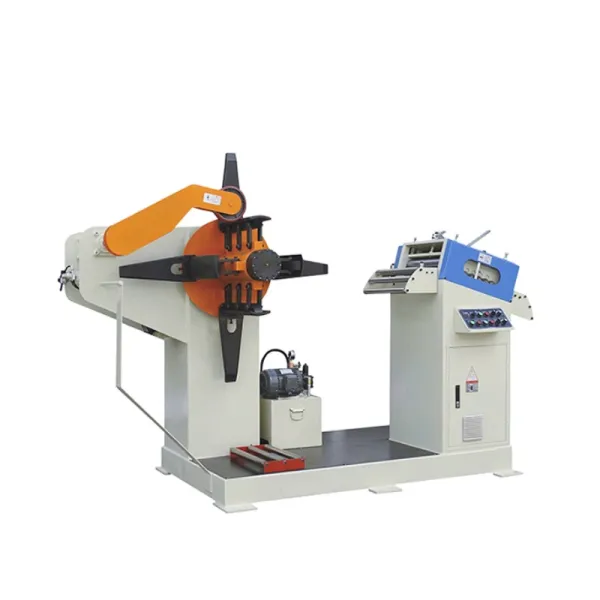

Decoiler straightener flattening 0.4–2.2 mm steel coil A steel coil is loaded onto the expanding mandrel of the decoiler section. Strip is pulled through a multi-roll straightener that flattens the material. The servo feeder then advances the strip an exact pitch into the punch press. All three functions are synchronized by one control system. Widths, inner and outer diameters, drive types and options are engineered to the customer's specifications. Tell our engineers your requirements for a drawing-based quotation. Uncoiling, straightening and feeding in one integrated unit saves floor space and simplifies line layout. A single control panel manages uncoil tension, straightener roller gap and feed pitch together. Multi-roll straightener removes coil set and camber so the strip enters the die flat and stress-free. Mandrel expansion and straightener roller gap are adjusted in minutes for faster job turnover. Chassis brackets, seat rails and structural stampings from coil. Shield cans, connector shells and precision brackets. Metal cabinets, drums and panels for white goods. Hardware, fittings and custom stampings from steel coil. Coil is placed on the mandrel and gripped by hydraulic or pneumatic expansion. Strip passes through straightener rollers that remove coil curvature. Servo feeder advances the strip to the exact pitch length every cycle. Press forms the part while the feeder holds position. Cycle continues automatically for high-volume production. Production floor with decoiler straighteners Close-up of straightener mechanism Decoiler straightener integrated with press FANTY designs and builds decoilers, feeders and straighteners in-house, so you talk directly to the maker. Every unit is tested before packing; photos and video of your actual machine can be shared for approval. Export packing protects the machine for ocean freight and reduces the risk of transit damage. Our team answers technical questions before purchase and supports installation and spares afterwards. Models cover 0.2 mm to 6.0 mm depending on the series. Each model page lists the exact thickness and width rating. A typical 3-in-1 unit needs 3–5 m of line length, compared with 6–10 m for separate machines. Exact dimensions are on the product page. Yes. We match the feeder interface, control voltage and line height to your press. Send us your press model and we confirm compatibility. Multi-roll straighteners reduce coil set to within 0.5 mm per metre, depending on material grade and thickness. Standard combinations ship in 25–35 working days. Custom specs may extend to 45 days. Yes. English manuals, video training and on-site or remote commissioning are available. Tell us your requirements. The FANTY engineering team will reply with a recommended configuration and a quotation.
HOW IT WORKS
How a Decoiler Straightener for 0.4～2.2mm Steel Works
0.4–2.2 mm
200–500 mm width
Tuned for medium gauge
Factory tested
CONFIGURATIONS
Typical Decoiler Straightener for 0.4～2.2mm Steel Configurations We Build
Parameter Typical value Model range GO series Strip thickness 0.4 – 2.2 mm Coil width 200 – 500 mm Coil weight Up to 3,000 kg Straightener rolls 5–7 rolls Drive AC motor Voltage 380 V / 220 V / custom Certification CE, ISO
CORE FEATURES
Features That Protect Your Coil and Your Line
Compact footprint
Synchronized control
Precision straightening
Quick coil change
APPLICATIONS
Where Decoiler Straightener for 0.4～2.2mm Steels Earn Their Keep
Automotive stamping
Electronics hardware
Appliance manufacturing
General metalworking
OUR PROCESS
From Inquiry to Installation: How FANTY Works
01
Load coil
02
Uncoil & straighten
03
Feed to press
04
Stamp & eject
05
Repeat
TRUST SIGNALS
Quality, Packing and Support You Can Verify
Factory-Direct Manufacturer
Run-Tested Before Shipping
Seaworthy Wooden-Case Packing
Engineering Support
FAQ
Decoiler Straightener for 0.4～2.2mm Steel Frequently Asked Questions
What thickness range does this combination handle?
How much floor space does the combination need?
Can I use this with any punch press?
What straightening accuracy is achieved?
What is the delivery time?
Do you provide commissioning support?
VIDEO
See Decoiler Straightener for 0.4～2.2mm Steel on a Real Line
Get a Decoiler Straightener for 0.4～2.2mm Steel Quotation
