SPCC vs DC01 Cold Rolled Steel: Key Differences, Applications, and Coil Processing Equipment Selection

In metal stamping, deep drawing, and sheet metal manufacturing, selecting the right cold rolled steel grade directly impacts product quality, forming success rates, and overall production efficiency. Two widely used grades—SPCC and DC01—share some similarities but have distinct differences in composition, hardness, and formability. Understanding these differences is essential when pairing materials with the right Coil Processing Equipment for your production line.

1. Standards and Chemical Composition

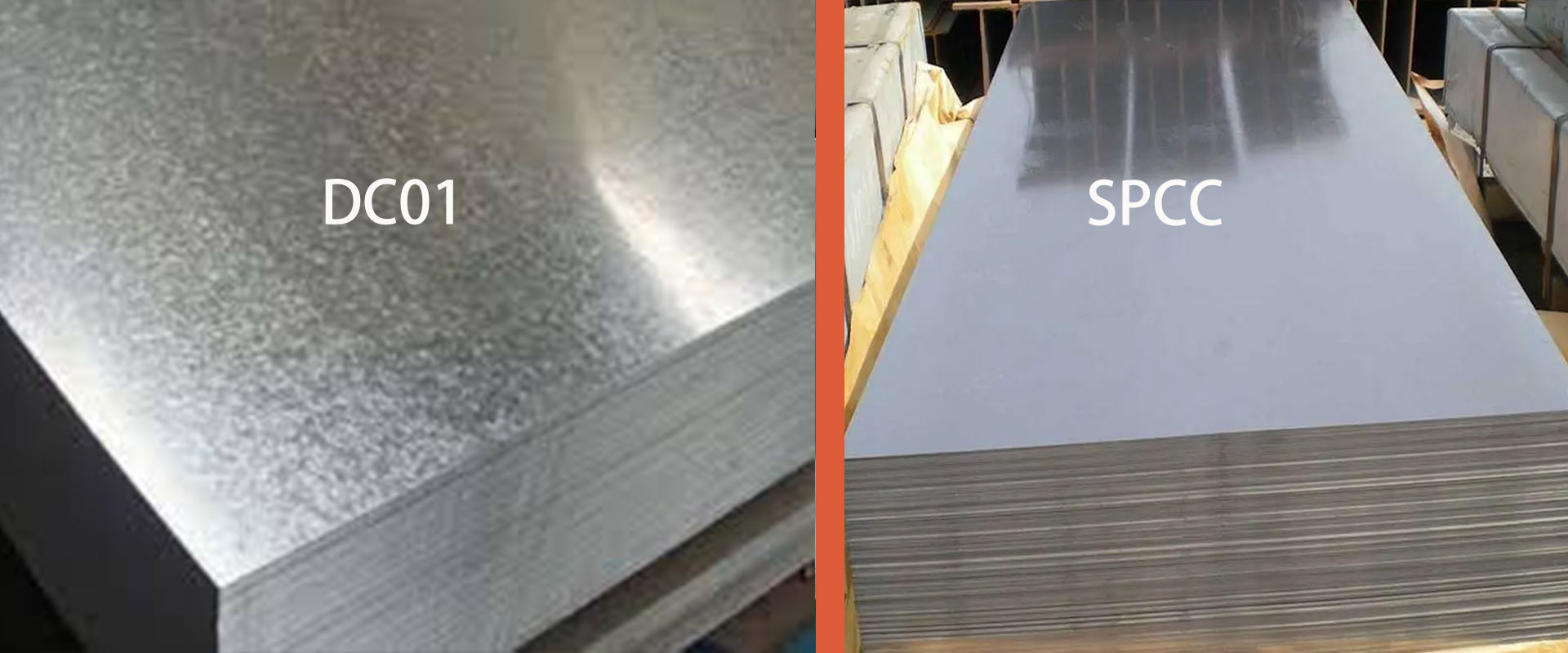

SPCC is defined under the Japanese JIS G3141 standard for commercial cold rolled steel. Its carbon content is slightly higher compared to DC01, resulting in a marginally higher hardness. DC01 falls under the European EN 10130 standard and is engineered for excellent ductility and formability, with lower carbon content, making it ideal for deep drawing operations.

2. Mechanical Properties and Formability

SPCC’s slightly higher hardness makes it better suited for general stamping, appliance housings, and parts that will undergo surface treatments like painting or plating. DC01, being softer and more ductile, excels in complex forming and deep drawing applications such as automotive body panels, where precise shapes and tight tolerances are required.

3. Typical Applications

• DC01: Automotive exterior panels, deep drawn parts, precision-formed components, and applications requiring excellent elongation.
• SPCC: Refrigerator and washing machine housings, general stamped parts, enclosures, and surface-treated products.

4. Coil Processing Equipment Selection for SPCC and DC01

Material characteristics dictate specific requirements for coil processing equipment. At Fanty, we provide integrated solutions—from decoilers to feeders—designed to handle both SPCC and DC01 efficiently while minimizing material damage and maximizing productivity.

4.1 Decoilers / Uncoilers

For DC01, which is sensitive to edge damage, a decoiler with precision tension control and soft engagement features is recommended. For SPCC, a robust decoiler with higher load capacity is preferred, but with consistent tension regulation to feed smoothly into the next process.

4.2 Straighteners / Levelers

DC01 benefits from multi-roll precision levelers to ensure flatness, which is critical for deep drawing. SPCC also requires straightening, but the focus can be on balancing throughput and flatness.

4.3 Feeders

For DC01 deep drawing lines, high-precision servo feeders with low impact are ideal. SPCC stamping lines can use high-speed mechanical or servo feeders with strong repeatability to support productivity.

4.4 Surface Protection

Regardless of the grade, surface protection is critical. Fanty integrates buffering rollers, soft-contact handling, and inline surface inspection into coil processing lines to prevent scratches and maintain premium surface quality before coating or painting.

5. Quality Control and Operational Tips

1. Verify material grade and surface quality upon coil arrival.
2. Run small-batch trials to assess actual formability before mass production.
3. Gradually increase line speed during setup to ensure tension and flatness stability.
4. Collaborate with your equipment supplier—Fanty offers customized coil processing equipment configurations for both SPCC and DC01.

Conclusion

SPCC and DC01 each have unique strengths—SPCC for general stamping and appliance housings, DC01 for deep drawing and automotive panels. The right coil processing equipment is the bridge between material potential and production performance. With Fanty’s integrated solutions, manufacturers can achieve higher efficiency, reduced scrap rates, and superior product quality across both material types.

References: JIS G3141 standard (SPCC), EN 10130 standard (DC01), Fanty coil processing equipment technical data.
