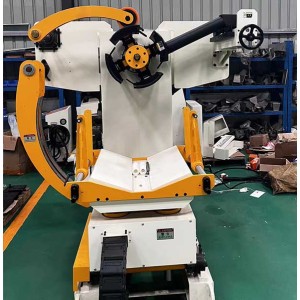

Hydraulic Decoiler for Smooth Steel Coil Unwinding
* Steel coil width handling- 200~600mm
* Steel coil thickness handling-0.1~3.0mm
* Steel coil loading wight- 1ton~5tons
* Steel coil I.D.-Ø508mm
* Steel coil O.D-Ø1200mm
Model | MT-200F | MT-300F | MT-400F | MT-500F | MT-600F |
Coil Width | 200mm | 300mm | 400mm | 500mm | 600mm |
Coil Thickness | 0.1~1.6mm | 0.1~3.0mm | 0.1~3.0mm | 0.1~3.0mm | 0.1~3.0mm |
Coil Loading Weight | 1 Ton | 2 Tons | 3 Tons | 3 Tons | 5 Tons |
Coil I.D. | Ø508mm | Ø508mm | Ø508mm | Ø508mm | Ø508mm |
Coil O.D. | Ø1200mm | Ø1200mm | Ø1200mm | Ø1200mm | Ø1200mm |
Fanty machine focus on the domestic market of punch press automation equipment production and sales from 2013. The field including domestic hardware industry , automotive stamping line, auto metal stamping part, saw blade production, high speed rotor and stator stamping and lamination, eyelet stamping line and so on.
We provide high quality uncoiling, leveling, feeding and punch equipment to help many local factories realize the importance of automation production, and more and more factories upgrade and improve their metal stamping line. Fanty machinery has exported machine to more than 30 countries. MORE
