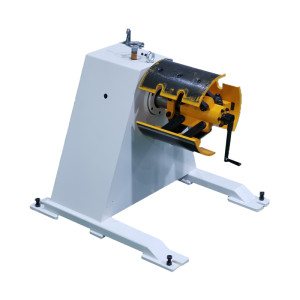

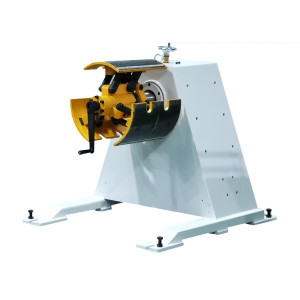

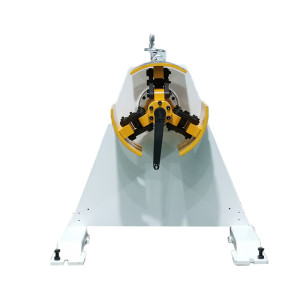

Manual Steel Coil Handling Decoiler for sale
* Steel coil width handling: 200~500mm
* Steel coil thickness handling range: 0.35 mm – 1.6 mm
* Coil I.D.:Ø450~530mm
* Coil O.D.:Ø1200mm
* Coil Loading Weight: 500~2000 kgs
* Manual Expansion
Model | MT-200 | MT-300 | MT-400 | MT-500 | MT-600 |
Coil Width | 200 mm | 300 mm | 400 mm | 500 mm | 600 mm |
Coil Thickness | 0.35 mm – 1.6 mm | 0.35 mm – 1.6 mm | 0.35 mm – 1.6 mm | 0.35 mm – 1.6 mm | 0.35 mm – 1.6 mm |
Coil I.D. | Ø450~530mm | Ø450~530mm | Ø450~530mm | Ø450~530mm | Ø450~530mm |
Coil O.D. | Ø1200mm | Ø1200mm | Ø1200mm | Ø1200mm | Ø1200mm |
Coil Loading Weight | 500 kgs | 800 kgs | 1000 kgs | 1500 kgs | 2000 kgs |
Mandrel Expansion | Manual Expansion |
Fanty machinery focus on the domestic market of punch press automation equipment production and sales from 2013. The field including domestic hardware industry , automotive stamping line, auto metal stamping part, saw blade production, high speed rotor and stator stamping and lamination, eyelet stamping line and so on.
We provide high quality uncoiling, leveling, feeding and punch equipment to help many local factories realize the importance of automation production, and more and more factories upgrade and improve their metal stamping line. Fanty machinery has exported machine to more than 30 countries. MORE
EXW, FOB, CFR, CIF.
A: Wooden case
