H-Frame Gantry punch press for High-Speed Precision Stamping
| Share | |
|---|---|
| Categories | High Speed Punch Press Machine |
| Brand | FANTY - Stamping Automation Equipment Manufacturer |
| Model | GP series Gantry Punching Machine |
| Color | Standard white (other colors are available) |
| Payment | 30% T/T as deposit, rest against shipping |
| Customized Service | Yes |
| FOB port | FOB Shenzhen |
| Terms of Payment | L/C, Western Union |
| Download |  |
FANTY · GP Series · High Speed Punch Press Machine The Punch Press for High-Speed Precision Stamping is a specialized machine for high-speed precision stamping applications — 65 t of pressing force, strokes of 30 mm, speeds of 200-800 spm. Send us your coil size, material and press data, and our engineers will confirm the right high-speed punch press configuration for your line before you order. Application Typical parts and production lines that this high-speed punch press feeds or supports. Progressive-die parts for body, chassis and powertrain components. Metal cabinets, drums, shelves and panels for home appliances. Shield cans, heat sinks, connector shells and brackets. Brackets, fasteners, hinges and structural metal parts. Why it works 65 t of pressing force for blanking, piercing and forming operations. Stroke range of 30 mm suits different part heights and die sets. Running at 200-800 spm to keep pace with high-speed press cycles. Strip and coil widths to 200 mm are supported across the model range. Heavy-duty cast or welded frame minimizes deflection under load for consistent part quality. Eight-point or box-type guiding maintains die alignment and extends tool life. Specifications Specifications are taken from the factory data sheet for this model. Tell us your coil or part data and our engineers will confirm the exact configuration before you order. FANTY factory workshop. Built by FANTY The GP Series is produced in the FANTY workshop alongside our full range of decoilers, straighteners, feeders and presses. Every unit goes through the same controlled build sequence before it is released for shipment. Upper and lower dies are aligned and clamped securely. Feeder advances the strip to the next pitch position. Slide descends and the die forms, cuts or pierces the material. Parts drop through the die or are carried out by a conveyor. On the assembly floor before test. Units in production at the factory. Machines prepared for delivery. FAQ We supply presses from 25 tons to 1,000 tons in C-frame, H-frame and gantry configurations. High-speed models reach 800–1,200 SPM depending on stroke length and die complexity. Bolster and slide dimensions vary by tonnage. We provide a die-fit chart for each model to confirm compatibility. Standard features include two-hand buttons, light curtains, overload clutch and emergency stop. Additional guarding is available. Yes. Motor and control voltages are configured to your local standard before shipment. Send us your material, coil or part data and press details. Our engineers will confirm the model, configuration and integration for your shop.H-Frame Gantry punch press for High-Speed Precision Stamping
At a glance
Where This High-Speed Punch Press Works
Automotive stamping
Appliance parts
Electronics hardware
Construction fittings
Key Features of the GP Series
65 t capacity
30 mm stroke
200-800 spm operation
Widths up to 200 mm
Rigid frame construction
Precision slide guiding
GP Series Technical Specifications
Model GPH-65 GPH-80 GPH-125 GPH-220 GPH-300/300L GPH-360 GPH-400/400L Capacity (t) 65 80 125 220 300 360 400 Rated Tonnage Point 2 2 2 2 2 2 2 Stroke Length (mm) 30 30 30 30 30 30 30 Number per minute (S.P.M) 200-800 200-700 150-700 150-600 100-450 75-350 60-300 Die height (mm) 350 380 420 440 460 460 480 Slider Adjustment (mm) 50 500 60 60 60 60 60 Bolster Area (mm) 950x650 1100x750 1400x850 2000x1000 2300/2500x1000 2500x1000 2800/3000x1200 Slider Area (mm) 950x420 1100x500 1400x600 2000x900 2300/2500x900 2500x900 2800/3000x900 Material Width (mm) 200 200 300 300 400 400 600 Main Motor(kw) 19 22 37 45 45 75 75

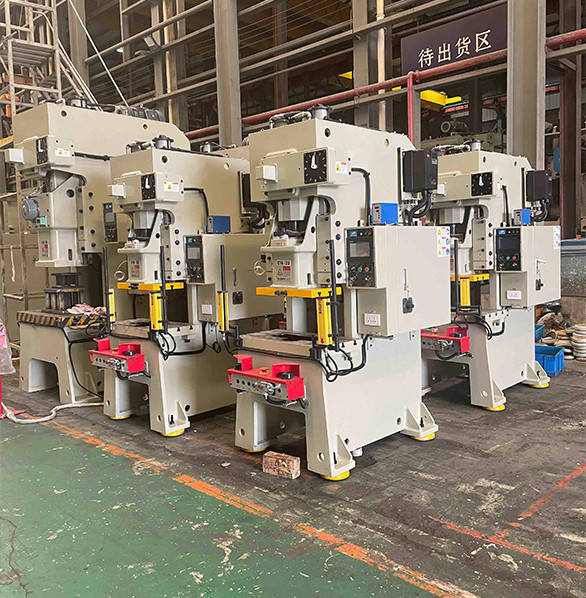

Assembled, Test-Run and Packed in Our Factory
Die mounting
Strip feeding
Stamp stroke
Part ejection
High-Speed Punch Press Questions, Answered
What tonnage range do you offer?
What is the maximum stamping speed?
What die sizes fit these presses?
What safety features are included?
Can the press voltage be customized?
Ready to put the GP Series to work on your line?
